180 PP Power Pack

Introduction

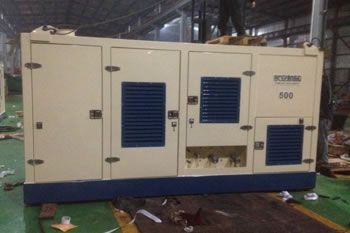

YONGAN power pack is manufactured to optimize the hydraulic pressure for a constant stability of the job performance on high efficiency of operation with YONGAN piling equipment. It is made by our high-tech CNC operated machinery. Open loop hydraulic system ensures easy assembly and maintenance. Power pack for hydraulic impact hammer is equipped with high quality hydraulic pump and top brand engine, thus maximum efficiency and reliability is ensured. The power unit is using sound proof frame with heavy steel enclosure, so noise levels are significantly reduced for a friendly operation environment. High cooling capacity of hydraulic system provides a stable hydraulic system and together with oversized radiator ensures no overheating problems. Hose power varies from 120P to 1320P for wide selection of YONGAN vibro hammer or impact hammer range.

Click to enlarge

Technical Parameters of 180PP Power Pack

180PP power pack for hydraulic impact hammer has motor power of 180hp, operation pressure of 24mpa, and fuel capacity of 400L. In addition, its oil tank can hold 800L oil. And the maximum oil flow is up to 200L/min.

180PP Power Pack	Engine Type	Cummins 6BTA5.9 C180
	Engine Power (HP)	180
	Operating Pressure (Mpa)	24
	Maximum Oil Flow (L/min)	200
	Hydraulic Oil Tank Volume (L)	800
	Fuel Tank Volume (L)	400

» Advantages

1.Powerful Diesel Engine
Yongan hammer is equipped with Caterpillar or Cummins engine which generates greater productivity by higher horse power and torque ratings.
2. Rexroth Hydraulic Pump
Yongan choose Rexroth hydraulic pump to obtain a great performance. We offer both fixed and variable displacement pump according to customer’s requirement.
3. Cooling System
Oversized radiator is used in yongan power pack ensuring it can work from -30° up to 50°
4. Reliable Filtration
Famous brand of filters are used to guarantee a long lasting efficiencies against contaminated oils and large amount of dust. It ensures filtration system for hydraulic and engine fuel system.
5.Manifold Block Utilize
Build-in manifold block is used for easy system control and supplies accurate system flow and pressure to the machine.
6.Simple Design of Control Panel
The power pack control panel is designed according to the easy operation principle and people’s using habit. We are using indication gauge to showing electrical and hydraulic system.
7.Remote Control
Remote control has main functions like emergency stop, engine speed adjust, clamp on/off, vibro operation. It ensures operator control piling or extracting in a long distance from piling area.

» Maintenances of Power Pack

1. Hydraulic oil should be changed in time.
2. Please check the tightness of the sealing elements regularly.
3. Oil tank should be tightly sealed to incoming of water and clutter.
4. Suction port of oil pump should be sealed to prevent air

» Payment and Delivery

30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery. The package and delivery of power pack can be arranged as required.

Yong'an Machinery, one of the most professional hydraulic impact hammer manufactures in China, was established in 1986. Our products take up to 70% of the whole China market. Our hydraulic impact hammer is popular pile driver in construction of prefabricating casing pile foundation, large-scale sea-crossing concrete pile bridge and ferry pier. Pile hammer is applicable in onshore and offshore pile driving conditions. Our hydraulic pile hammer is applied in more than 300 large bridges, such as Hangzhou Bay Bridge, Yellow River Bridge and Jintang Cross-sea Bridge. Yong'an also has vibratory hammer series, which are widely used not only in China but also in overseas market such as Japan, Korea, Indonesia, Malaysia, Ecuador, Russia, Libya, Vietnam Ghana and Philippines.
