Caisson Clamp

Standard Clamp
Description:

Caisson clamp is a type of pile hammer clamp, which is used with hydraulic vibratory hammer to drive piles. It is made up of connector, chuck, cylinder, caisson beam and jaw. Hydraulic caisson clamp is wildly used to drive and pull special steel piles, steel sheet piles and H beam piles. Additionally, it is also workable in precast piles operation.

Click to enlarge
» Features
    1. ● 1.The caisson clamp can simply adjust the clamp range by moving the clamp on the caisson beam.
    2. ● 2.The double clamp has hydraulic locking device and system which is ensuring the double clamp assembled on caisson beam perfectly.
    3. ● 3. The caisson clamp can adjust to different sizes to suit for difference pipe size with a selection of beam size.
» Parameters

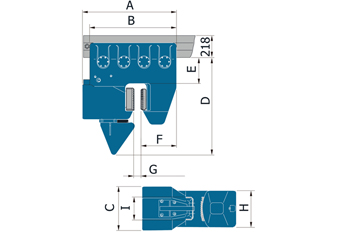

Clamp Model  Clamping Force (kn) Operation Pressure (bar) Weight (kg) Size(mm)
A B C D E F G H I
YZJ80PC 800 320 480 610 440 300 638 138 225 0-40 272 135
YZJ125PC 1250 320 666 700 569 340 651 136 272 0-36 272 190
YZJ200PC 2000 320 1350 913 840 430 947 251 350 0-65 355 220
» Payment and Package

30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
Caisson clamp would be wrapped with thin film or packaged in wooden boxes as required.

Yong'an Machinery Co., Ltd. progresses year by year under the support and understanding of its beloved and widespread customers. We adopt advanced technology to manufacture caisson clamp and other products. In addition, the company also manages to bring in innovative idea and skills to improve product quality. And we also have a production base, covering an area of more than 13, 500 square meters.
