Double Clamp

Double Clamp
Description:

Double clamp is an accessory for hydraulic vibratory hammer. Chuck, cylinder, caisson beam and jaw are its main components. It may be used with vibratory hammer to commence construction operations. And it is adapted for special casing piles, steel sheet piles, precast piles and H beam piles.

Click to enlarge
» Features
    1. 1. The caisson clamp can simply adjust the clamp range by moving the clamp on the caisson beam.
    2. 2. The double clamp has hydraulic locking device and system which is ensuring the double clamp assembled on caisson beam perfectly.
    3. 3. The caisson clamp can adjust to different sizes to suit for difference pipe size with a selection of beam size.
» Parameters

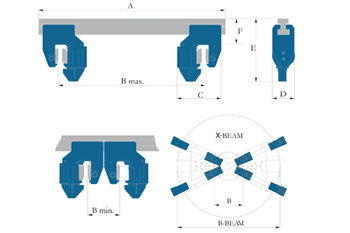

Clamp Model Weight(kg) Size (mm)
    A B min B max C D E F
YZJ80DC 1220 1520 450 1070 610 300 920 420
  1460 2200 450 1750 610 300 920 420
  1420 2400 450 1840 610 300 860 360
  2260 2600 450 2150 610 300 1090 590
  2810 3400 450 2950 610 300 1110 610
YZJ125DC 1606 2400 545 1747 700 340 869 354
  2446 2600 545 2055 700 340 1099 584
  2996 3400 545 2855 700 430 1119 604
YZJ200DC 3140 2400 700 1590 913 430 1165 470
  4000 2600 700 1900 913 430 1400 701
  4580 3400 700 2700 913 430 1420 725
  5150 3800 700 3100 913 430 1600 901
  5650 4500 700 3800 913 430 1600 901
YZJX-BEAM 6600 4050 700 3600 913 430 1286 786
» Payment and Package

30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
Double clamp should be wrapped by thin film or packages in wooden boxes as required.

Yong'an Machinery Co., Ltd. is a professional company that integrates the design and development, manufacturing, selling and leasing of vibratory hammer series products. We are ceaselessly committed to technological innovation as well as research and development of double clamp. Our company has been certified by UC and ISO9001 quality management system.
