Standard Single Clamp
![Standard Single Clamp](pro/hydraulic-vibratory-hammer/1-2-1-1d.jpg)
Standard single clamp, a kind of hydraulic pile clamps, is special equipment used with vibratory hammer to conduct foundation constructions. It mainly constitutes chuck, cylinder, caisson beam and jaw. And hydraulic clamp pile is wildly applicable in various steel piles, such as special casing piles, steel sheet piles and H beam piles. In addition, it can work well in the operation of precast piles.
- ● 1. The clamp contains two gripping jaws, one is fixed and one is movable.
- ● 2. The integrated cylinder operates the movable jaw.
- ● 3. Clamping force depends on the clamp pump relief pressure.
- ● 4. Check valve keeps the clamp cylinder under pressure in case of hose damage.
- ● 5. The clamp can be operated open and close by the control panel on the power pack or remote control of the vibratory hammer
Clamp Model | YZJ100 | YZJ160 | YZJ200 | YZJ320 |
Clamping Force(KN) | 1000 | 1600 | 2000 | 3200 |
Working Pressure(bar) | 320 | 320 | 320 | 320 |
Weight (kg) | 490 | 1100 | 1300 | 2500 |
L×W×H (mm) | 686 × 310 × 705 | 1138 × 340 × 894 | 1143 × 360 × 1046 | 1363 × 460 × 1097 |
Suitable Vibrator Model | YZ-70 | YZ-130/YZ-180 | YZ-230 | YZ-300 |

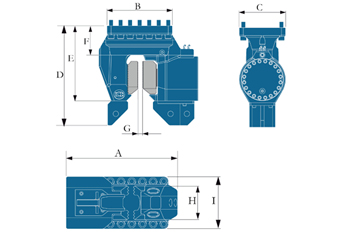

Size (mm) A | 685 | 1136 | 1144 | 1363 |
B | 480 | 935 | 940 | 1100 |
C | 340 | 305 | 340 | 400 |
D | 705 | 894 | 1046 | 1097 |
E | 515 | 668 | 800 | 870 |
F | 200 | 319 | 375 | 415 |
G | 0-37 | 0-55 | 0-57 | 0-62 |
H | 220 | 305 | 340 | 400 |
I | 110 | 340 | 360 | 460 |
30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
Standard pile clamp will be wrapped with thin film or packaged in wooden boxes as required.
Yong'an machine is a leading clamp manufacturer in vibratory hammer industry. Our company has always attached great importance to quality and efficiency of our products. Thus we establish a severe and comprehensive supervising system. The standard single clamp we manufacture, together with double clamp and single clamp, is more of high quality. Our products are sold to many overseas countries including Japan, South Korea, Egypt, Malaysia, Ecuador, Russia, and etc..
