Double Clamp
![](pro/electric-vibratory-hammer/4-5-2-1d.jpg)
Hydraulic double clamp is an accessory for hydraulic vibratory hammer. Chuck, cylinder, caisson beam and grasping sheet are its main components. Hydraulic vibrator pile clamp can be used with vibratory hammer to commence construction operations. And it is adapted for special casing piles, steel sheet piles, precast piles and H beam piles.
2. Clamp force of hydraulic clamp pile will stay stable by timely replaconcrete of oil.
3. It makes use of the clamp force brought by the action of cylinder driving caisson beam to .

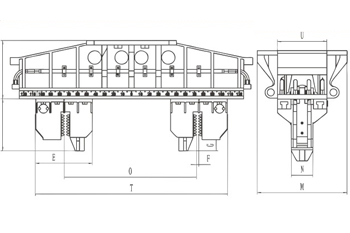

Model No. | Clamping Force (Kn) | C (mm) |
E (mm) |
F (mm) |
G (mm) |
L (mm) |
M (mm) |
N (mm) |
O (mm) |
T (mm) |
U (mm) |
Weight (Kg) | Applicable Model |
ZYJ-II480*2 | 480*2 | 620 | 620 | 48-0 | 150 | 625 | 800 | 250 | 600-2000 | 2500 | 550 | 3300 | 90/120 |
ZYJ-II1050 | 1050*2 | 740 | 720 | 50-0 | 180 | 650 | 800 | 250 | 600-2600 | 3100 | 550 | 3700 | 135/150 |
ZYJ-II1300*2 | 1300*2 | 920 | 750 | 55-0 | 270 | 750 | 1000 | 250 | 800-3000 | 3500 | 700 | 3820 | 180/200/240 |
Various double clamps are for selection in accordance with different pile structures.
Thirty percent of total money will be paid as deposit when the contract is signed and the rest will be paid before delivery.
Hydraulic vibrator pile clamp should be wrapped by thin film or packages in wooden boxes as required.
Yong'an Machinery Co., Ltd. is a professional company that integrates the design and development, manufacturing, selling and leasing of double clamp. We are ceaselessly committed to technological innovation as well as research and development of hydraulic double clamp. Our company has been certified by CE and ISO9001 quality management system.
