Quaternion Clamp
Hydraulic quaternion clamp is an accessory for hydraulic vibratory hammer. Chuck, cylinder, caisson beam and grasping sheet are its main components. Hydraulic pile clamp for vibratory hammer can be used with vibratory hammer to commence construction operations. And it is adapted for special pipe piles, sheet piles, precast piles and H beam piles.
2. Clamp force of hydraulic clamp will stay stable by timely replacement of oil.
3. It makes use of the clamp force brought by the action of cylinder driving caisson beam to

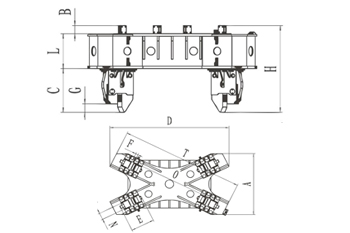

| Model No. | Clamping Force (Kn) | A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
F (mm) |
G (mm) |
T (mm) |
L (mm) |
N (mm) |
O (mm) |
Weight (Kg) | Applicable Model |
| ZYG-IV | 1300*4 | 2250 | 200 | 1370 | 4850 | 827 | 60-0 | 240 | 2655 | 5000 | 1085 | 250 | 1500-3500 | 15000 | 240/300/400 |
Various quaternion clamps are for selection in accordance with different pile structures.
Thirty percent of total money will be paid as deposit when the contract is signed and the rest will be paid before delivery. Hydraulic pile clamp for vibratory hammer should be wrapped by thin film or packages in wooden boxes as required.
Yong'an Machinery Co., Ltd. is a professional company that integrates the design and development, manufacturing, selling and leasing of quaternion clamp. We are ceaselessly committed to technological innovation as well as research and development of hydraulic quaternion clamp. Our company has been certified by UC and ISO9001 quality management system.
