Single Clamp

Introduction

Hydraulic single clamp is employed with vibratory hammer in foundation constructions. This hydraulic pile clamp for electric vibratory hammer is made up of chuck, cylinder, caisson beam and grasping sheet. At present, it is widely applicable for driving and pulling special casing piles, steel sheet piles, H-steel piles and precast piles.

Click to enlarge

» Features of Single Clamp

1. The hydraulic single clamp creates clamp force to grip piles by way of cylinder driving caisson beam.
2. Clamping force can be adjustable with the change of working pressure (oil pressure).
3. A replenishment of oil by hydraulic control device will be able to ensure a stability of clamp strength during operation.

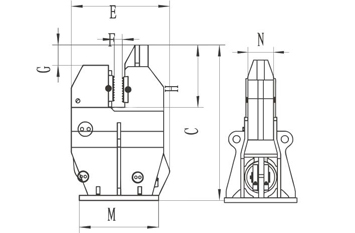

» Parameters of Single Clamp

Model No.	Clamping Force(KN)	C (mm)	N (mm)	E (mm)	F (mm)	G (mm)	H (mm)	Diameter (mm)	Weight(kg)	Applicable Model	Description
ZYJ-I45	450	904	190	600	40-0	145	395	540	500	15/30/40	Arc Jaw Optional
ZYJ-I75A	450	1100	190	670	50-0	180	450	540	600	45
ZYJ-I75B	450	1100	190	670	50-0	180	460	650	600	60
ZYJ-I85	850	1130	250	690	50-0	180	460	720	1100	90
ZYJ-I130	1300	1375	250	790	50-0	180	535	780	1500	120/135

» Payment and Package

1. As long as the contract is signed, thirty percent money will be paid immediately and the rest will be given before delivery.
2. As for the package, hydraulic single clamps are suggested to be wrapped with thin film or packaged in wooden boxes according to customers' actual demand.

Yong'an machine is a leading pile clamp manufacturer in China. Our company has always attached great importance to quality and efficiency of our products. Thus we establish a severe and comprehensive supervising system. The hydraulic single clamp we manufacture, together with double clamp and clamp, is more of high quality. Our products are sold towards many overseas countries including Japan, South Korea, Egypt, Malaysia, Ecuador, Russia and etc.
