DZ-45 Small Electric Vibratory Hammer
The small electric vibratory hammers are designed based on resonance theory. They are made up of hammer, clamps and power control boxs. The electric motors provide energy for them and the motors work as key components. These vibratory hammers are in very popular use in dwelling houses, workshops, metros, highway, power stations, and so on.

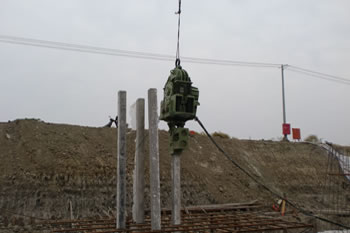

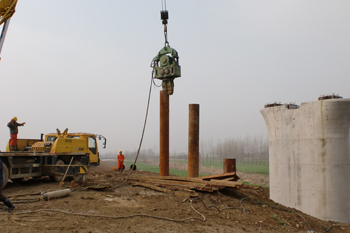

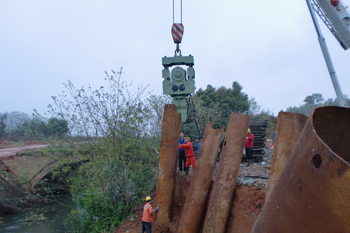

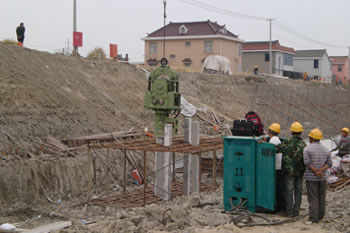

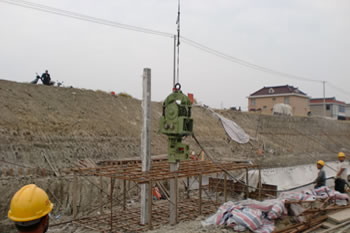

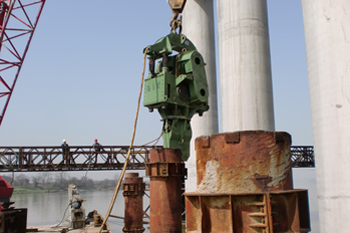

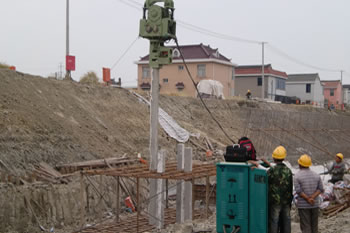

When utilized in pile frames, these small electric vibraotry hammers can drive cast-in-place concrete piles, lime piles and sand piles. While if matched with clamps, they are able to drive and pull a variety of steel piles and concrete pre-cast piles. Besides, such vibratory hammers can be used in constructions of pre-cast concrete pile, cofferdam, trestle engineering and offshore work platform and offshore wind single pile or pile group foundation.
- 1. Small electric vibratory hammers are featured in great centrifugal force, high frequency and strong penetrating power through hard soil.
- 2. These vibratory hammers are equipped with weights on the vibration damper beam. While pile driving, the large storage energy from the coil spring can improve the efficiency of hammering. When pile pulling, good damping effect can be achieved and the pile frame can be well protected as well.
| DZ-45 Small Electric Vibratory Hammer | |
| Motor Power (kW) | 45 |
| Eccentric Moment (Nm) | 287 |
| Frequency (rpm) | 1100 |
| Centrifugal Force(kN) | 380 |
| Max Line Pull (kN) | 180 |
| Amplitude (mm) | 6.2 |
| Size (mm) | 1650 × 1200 × 2300 |
| Without Clamp (Kg) | 3800 |
| Single Clamp (Kg) | 600 |
| Min Crane Capacity (T) | 25 |
30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
Small electric vibratory hammer and clamp can be packaged with thin film, and the control cabinet and components can be packed with wooden box (depending on clients' requirements).
Founded in 1986, Yong'an Machinery is a professional small electric vibratory hammer supplier. The company provides its customers with all-round services ranging from pre-sale to after sale. Moreover, we are consistently dedicated to technological innovation and quality improvement. If you want more information about small electric vibratory hammer, please feel free to visit our website or contact us directly.
