DZJ90 Small Electric Vibratory Hammer
The small electric vibratory hammers are designed based on resonance theory. They are made up of hammer, clamps and power control boxs. The electric motors provide energy for them and the motors work as key components. Electric pile hammers are in very popular use in dwelling houses, workshops, metros, highway, power stations, and so on.

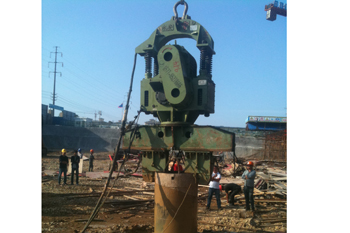

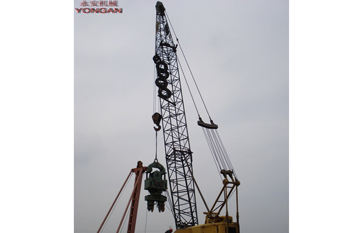

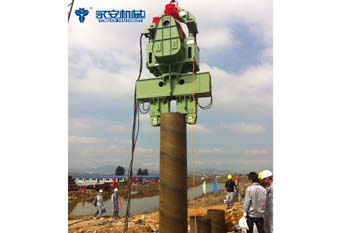

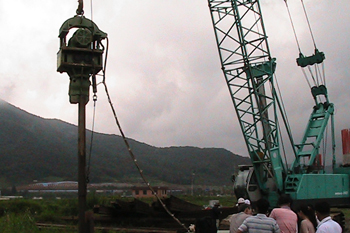

When used in the pile frames, small electric vibratory hammer can drive cast-in-place concrete piles, lime piles, and sand piles. While if equipped with clamp, this pile driver works very well to drive and pull steel casing piles, steel sheet piles, joist piles and concrete precast piles.
With custom designed concrete clamp, small electric vibratory hammer can be used for various types of pre-made concrete piles, cast-in-place concrete pile, concrete expanded bore pile ,lime pile ,stone column pile.

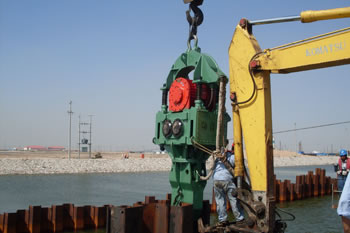

2. Cofferdam
Electric pile hammer is used to drive sheet pile to build the coffer wall. It is high efficiency to drive and pull sheet piles.

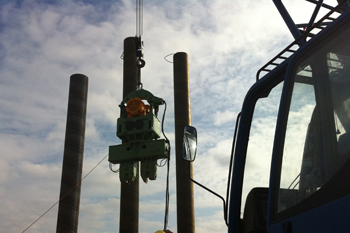

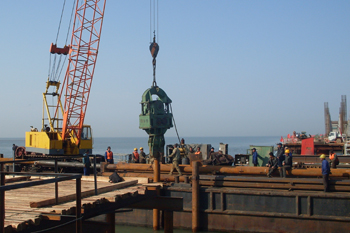

3. Trestle Work and Offshore Working Platform
Drive sheet pile or casing pile to build working passage and platform before build bridge, dork, port etc. It is east to build and easy to remove.
4. Wind Mill Single Pile and Group Pile
It is efficient to use small electric vibratory hammer drive casing pile into the sea , environmentally friendly and easy to adjust.
2. This automatic pile driver is capable of penetrating hard soil with no difficulty.
3. With a heavy armed on the damper, this hammer can drive piles very powerfully. In addition, the large storage of energy in the spring contributes to improving the efficiency of pile driving. And the good damping effect may protect pile frames as well in pulling piles.
| DZ-90 Small Electric Vibratory Hammer | |
| Motor Power(KW) | 90 |
| Eccentric Moment (Nm) | 573 |
| Frequency (rpm) | 0-960 |
| Centrifugal Force (kN) | 579 |
| Max Line Pull (kN) | 254 |
| Amplitude (mm) | 0-6.6 |
| Size (mm) | 1850*1300*2500 |
| Without Clamp (kg) | 5700 |
| Single Clamp (kg) | 1100 |
| Min Crane Capacity (T) | 50 |
Clients should pay more attention to the centrifugal force, amplitude and eccentric moment. These parameters can tell the strength of a small electric vibratory hammer. Meanwhile, different types of electric vibratory hammers have different requirements on corollary equipments (such as the power of motor and the tonnage of crane).
30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
The hammer and clamp can be packaged with thin film, and the control cabinet and components can be packed with wooden box (depending on clients' requirements).
