DZJ200 Large Electric Vibratory Hammer
Large electric vibratory hammer takes resonance theory as its design principle and gains power from dynamo. It is mainly made up of hammer, clamp and control box. The hammer has recently become an ideal pile driver for foundation works and ground treatments, for example, residency, workshops, metros, motorways, docks, airports and power stations. Electric pile hammer has won certificate of ISO9001.
2. This pile driver works well owing to the equipment of a heavy. When driving piles, the larger storage of coil spring will improve the efficiency of pile driving. And when pulling piles, a better damping effect helps to protect pile frame soundly.

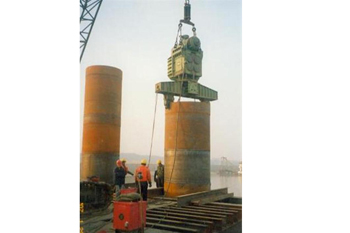

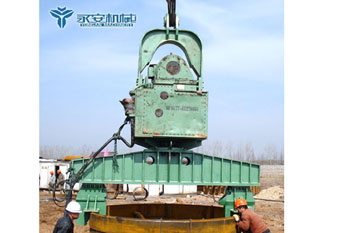

When used in the pile frames, large electric vibratory hammer can drive cast-in-place concrete piles, lime piles, and sand piles. While if equipped with clamp, this pile driver works very well to drive and pull steel casing piles, steel sheet piles, joist piles and concrete precast piles.
With custom designed concrete clamp, small electric vibratory hammer can be used for various types of pre-made concrete piles, cast-in-place concrete pile, concrete expanded bore pile, lime pile and and stone column pile.
2. Cofferdam
Electric pile hammer is used to drive sheet pile to build the coffer wall. It is high efficiency to drive and pull sheet piles.

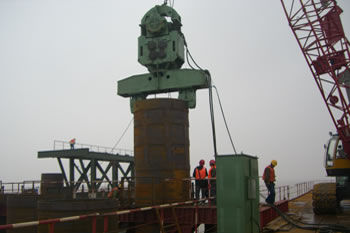

3. Trestle Work and Offshore Working Platform
Drive sheet pile or casing pile to build working passage and platform before build bridge, dork, port, etc. It is easy to build and easy to remove.

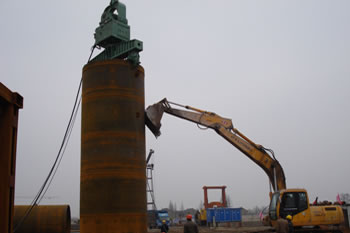

4. Wind Mill Single Pile and Group Pile
It is efficient to use small electric vibratory hammer to drive casing pile into the sea, environment friendly and easy to adjust.
| DZJ-200 Large Electric Vibratory Hammer | |
| Motor Power (Kw) | 200 |
| Eccentric Moment (Nm) | 2388 |
| Frequency (r/min) | 0-780 |
| Centrifugal Force (kN) | 0-1592 |
| Max. Line Pull (kN) | 588 |
| Amplitude (mm) | 0-16.7 |
| Size(mm) | 2200*170*3500 |
| Without Clamp (Kg) | 11500 |
| Double Clamp (Kg) | Scope(600-3000mm)/3820 |
| Min. Crane Capacity (t) | 120 |
Line pull, amplitude and eccentric moment of medium vibration hammer should be taken into account, for they can reflect the strength of the electric hammer. In addition, please do pay attention to different hammers' requirements for corollary equipment.
30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
The hammer and clamp can be packaged with thin film, and the control cabinet and components can be packed with wooden box (depending on clients' requirements).
