DZJ300 Large Electric Vibratory Hammer
With the adoption of resonance theory, Yong'an large electric vibratory hammer can be adapted for driving cast-in-place piles, lime piles, sand piles and all kinds of steel piles and precast piles. Powered by an electric motor, vibrating pile driver is agreeable for building dwellings, workshops, subways, motorways and other foundation treatment constructions. This large electric vibratory hammer is made up of a hammer, a clamp and a power control box.
2. Vibrating pile driver is equipped with a heavy on the damper. As the larger storage of energy in the spring, the use of this hammer will greatly improve pile driving efficiency. And the good damping effect helps to well protect the frame.

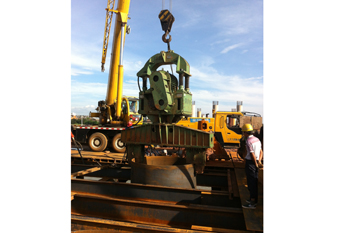

When used in the pile frames, large electric vibratory hammer can drive cast-in-place concrete piles, lime piles, and sand piles. While if equipped with clamp, this pile driver works very well to drive and pull steel casing piles, steel sheet piles, joist piles and concrete precast piles.
With custom designed concrete clamp, large electric vibratory hammer can be used for various types of pre-made concrete piles, cast-in-place concrete pile, concrete expanded bore pile, lime pile and stone column pile.
2. Cofferdam
Vibrating pile driver is used to drive sheet pile to build the coffer wall. It is high efficiency to drive and pull sheet piles.
3. Trestle Work and Offshore Working Platform
Drive sheet pile or casing pile to build working passage and platform before build bridge, dork, port, etc. It is easy to build and easy to remove.
4. Wind Mill Single Pile and Group Pile

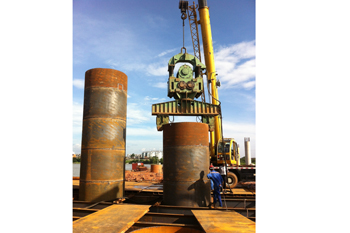

It is efficient to use large electric vibratory hammer to drive casing pile into the sea, environmentally friendly and easy to adjust.
| DZJ-300 Large Electric Vibratory Hammer | |
| Motor Power (Kw) | 300 |
| Eccentric Moment (Nm) | 2164 |
| Frequency (r/min) | 0-960 |
| Centrifugal Force (kN) | 0-2185 |
| Max Line Pull (kN) | 686 |
| Amplitude (mm) | 0-18.7 |
| Size (mm) | 2200*2200*3500 |
| Without Clamp (kg) | 15000 |
| Double Clamp (Kg) | Scope(800-3000mm)/3820kg |
| Min Crane Capacity (T) | 130 |
Line pull, amplitude and eccentric moment of large electric hammer should be taken into account, for they can reflect the strength of the electric hammer. In addition, please do pay attention to different hammers' requirements for corollary equipment.
30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
The hammer and clamp can be packaged with thin film, and the control cabinet and components can be packed with wooden box (depending on clients' requirements).
Established in 1986, Shanghai Yong'an Machinery Co., Ltd. is a professional maker of large electric vibratory hammer in China. And with 27 years development, we have accumulated rich experience in the manufacturing, selling and utilizing electric vibrating hammers. We are capable of providing all-round service for every customer, from pre-sale technology consulting to after-sale application. We are constantly committed to technology innovation and development of vibrating pile driver..
