DZJ-120 Medium Electric Vibratory Hammer
The medium electric vibratory hammers are designed based on resonance theory. They are made up of hammer, clamps and power control boxs. The electric motors provide energy for them and the motors work as key components. Electric pile drivers are in very popular use in dwelling houses, workshops, metros, highway, power stations, and so on.
2. It can work well to penetrate soil of hard layer.
3. Electric pile driver is equipped with a heavy on the damper. As the larger storage of energy in the spring, the use of this hammer will greatly improve pile driving efficiency. And the good damping effect helps to well protect the frame.

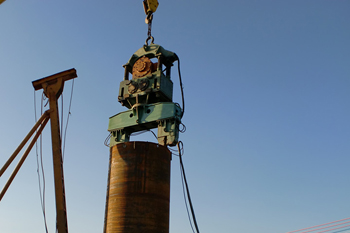

When used in the pile frames, electric vibratory hammer can drive cast-in-place concrete piles, lime piles, and sand piles. While if equipped with clamp, this pile driver works very well to drive and pull steel casing piles, steel sheet piles, joist piles and concrete precast piles.
With custom designed concrete clamp, medium electric vibratory hammer can be used for various types of pre-made concrete piles, cast-in-place concrete pile, concrete expanded bore pile, lime pile and stone column pile.
2. Cofferdam
Electric pile driver is used to drive sheet pile to build the coffer wall. It is high efficiency to drive and pull sheet piles.

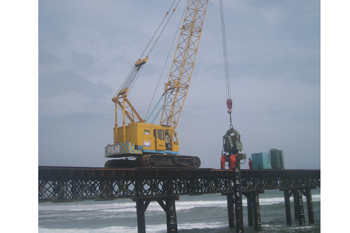

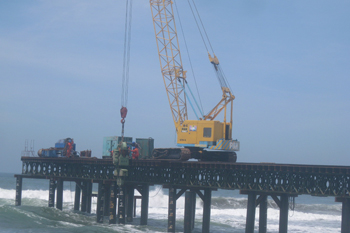

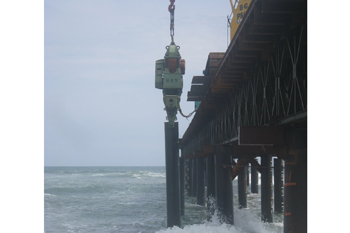

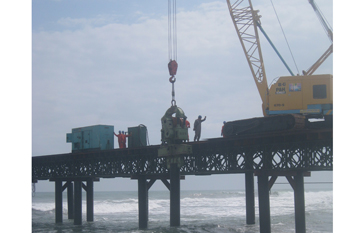

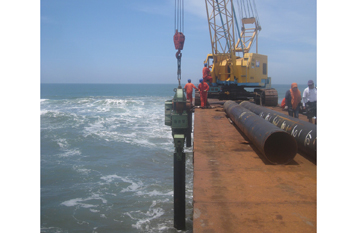

3. Trestle Work and Offshore Working Platform
Drive sheet pile or casing pile to build working passage and platform before build bridge, dork, port, etc. It is easy to build and easy to remove.
4. Wind Mill Single Pile and Group Pile

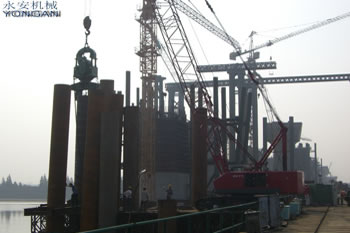

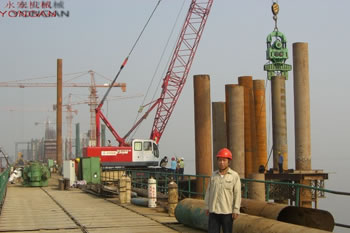

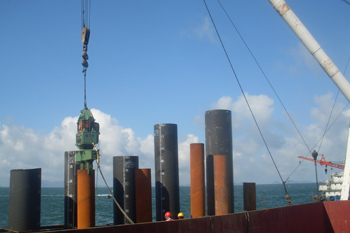

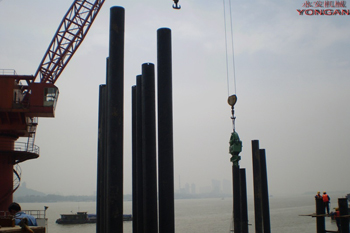

It is efficient to use medium electric vibratory hammer to drive casing pile into the sea, environmentally friendly and easy to adjust.
| DZJ-120 Medium Electric Vibratory Hammer | |
| Motor Power (Kw) | 120 |
| Eccentric Moment (Nm) | 750 |
| Frequency (rpm) | 0-1000 |
| Centrifugal Force (kN) | 0-823 |
| Max Line Pull (kN) | 392 |
| Amplitude (mm) | 0-7.45 |
| Size (mm) | 2100*1400*2600 |
| Without Clamp (Kg) | 7000 |
| Single Clamp (Kg) | 1500 |
| Min Crane Capacity (t) | 70 |
Line pull, amplitude and eccentric moment of medium electric vibratory hammer should be taken into account, for they can reflect the strength of the electric hammer. In addition, please do pay attention to different hammers' requirements for corollary equipment.
30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
The hammer and clamp can be packaged with thin film, and the control cabinet and components can be packed with wooden box (depending on clients' requirements).
