DZJ180 Medium Electric Vibratory Hammer
Medium electric vibratory hammer is designed with the employment of resonance theory, to which electric motor offers energy. With electrical machine as its key component, pile driver is composed of hammer, clamp and power control box. And such vibratory hammer is of high quality which can be testified by its certificate of ISO9001. Thus it is widely suitable for various foundation treatment constructions like dwelling houses, workshops, highway, airport and so many so forth.
1. Powerful centrifugal force and high frequency are the noticeable features of medium electric vibratory hammer.
2. It can work well to penetrate soil of hard layer.
3. This pile driver is equipped with a heavy on the damper. As the larger storage of energy in the spring, the use of this hammer will greatly improve pile driving efficiency. And the good damping effect helps to well protect the frame.
When used in the pile frames, medium electric vibratory hammer can drive cast-in-place concrete piles, lime piles, and sand piles. While if equipped with clamp, this pile driver works very well to drive and pull steel casing piles, steel sheet piles, joist piles and concrete precast piles.
With customized concrete clamp, vibratory hammer can be used for various types of pre-made concrete piles, cast-in-place concrete pile, concrete expanded bore pile, lime pile and stone column pile.
2. Cofferdam
Pile driver is used to drive sheet pile to build the coffer wall. It is high efficiency to drive and pull sheet piles.

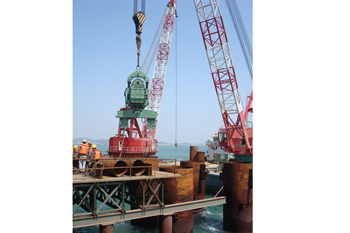

3. Trestle Work and Offshore Working Platform
Drive sheet pile or casing pile to build working passage and platform before build bridge, dork, port, etc. It is easy to build and easy to remove.
4. Wind Mill Single Pile and Group Pile

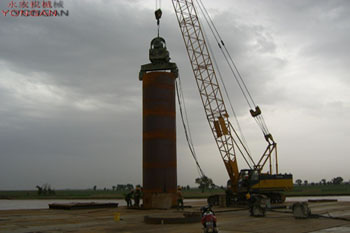

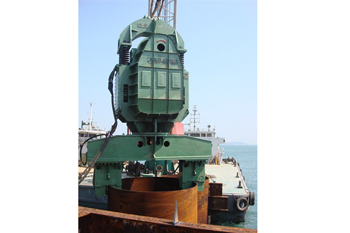

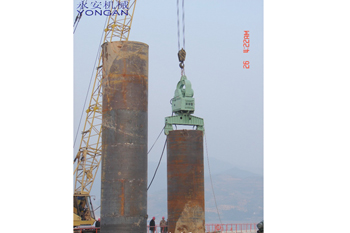

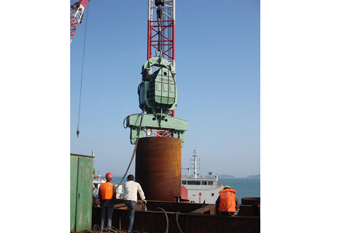

It is efficient to use medium electric vibratory hammer to drive casing pile into the sea , environmentally friendly and easy to adjust.
| DZJ-180 Medium Electric Vibratory Hammer | |
| Motor Power (Kw) | 180 |
| Eccentric Moment (Nm) | 1240 |
| Frequency (r/min) | 0-1000 |
| Centrifugal Force (kN) | 0-1390 |
| Max Line Pull (kN) | 530 |
| Amplitude (mm) | 0-17.4 |
| Size (mm) | 2250*1550*3300 |
| Without Clamp (Kg) | 11000 |
| Double Clamp (Kg) | Scope (600-2500mm)/3700kg |
| Min Crane Capacity (t) | 100 |
Line pull, amplitude and eccentric moment of medium electric vibratory hammer should be taken into account, for they can reflect the strength of the electric hammer. In addition, please do pay attention to different hammers' requirements for corollary equipment.
30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
The hammer and clamp can be packaged with thin film, and the control cabinet and components can be packed with wooden box (depending on clients' requirements).
Throughout these 27 years, Yong'an has been enriching and renewing medium electric vibratory hammer. At present, the company manufactures vibration hammers of various kinds and their accessories. At the same time, we always attempt to improve the quality of each item of our entire products. Through lots of efforts, we've got certified by CE and ISO9001.Please visit our website for more information.
