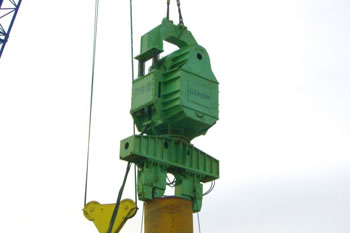

DZJ150 Medium Electric Vibratory Hammer

1. Powerful centrifugal force and high frequency are the noticeable features of medium electric vibratory hammer.
2. It can work well to penetrate soil of hard layer.
3. Pile driver is equipped with a heavy on the damper. As the larger storage of energy in the spring, the use of this hammer will greatly improve pile driving efficiency. And the good damping effect helps to well protect the frame.

When used in the pile frames, medium electric vibratory hammer can drive cast-in-place concrete piles, lime piles, and sand piles. While if equipped with clamp, this pile driver works very well to drive and pull steel casing piles, steel sheet piles, joist piles and concrete precast piles.

1. Pre-Made Concrete Pile
With custom designed concrete clamp, medium electric vibratory hammer can be used for various types of pre-made concrete piles, cast-in-place concrete pile, concrete expanded bore pile, lime pile and stone column pile.

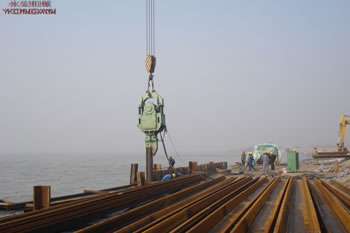

2. Cofferdam
Pile driver is used to drive sheet pile to build the coffer wall. It is high efficiency to drive and pull sheet piles.

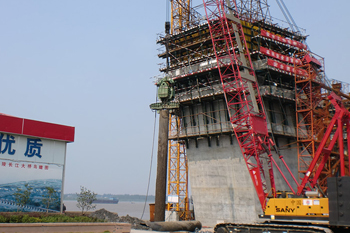

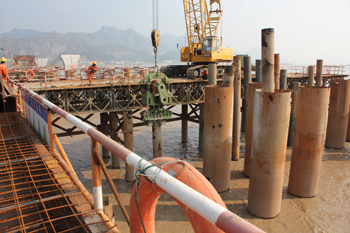

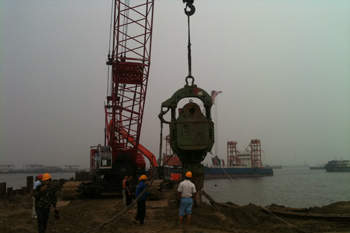

3. Trestle Work and Offshore Working Platform
Drive sheet pile or casing pile to build working passage and platform before build bridge, dork, port, etc. It is easy to build and easy to remove.

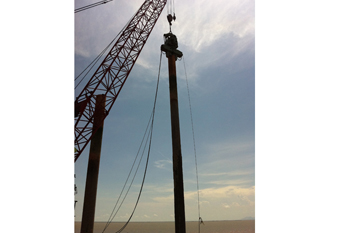

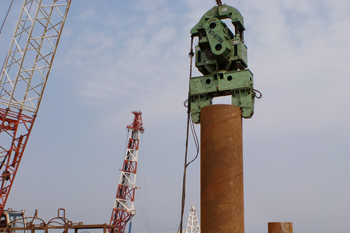

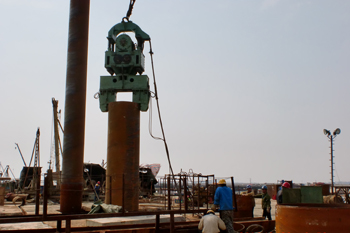

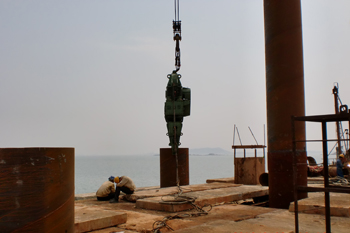

4. Wind Mill Single Pile and Group Pile
It is efficient to use medium electric vibratory hammer to drive casing pile into the sea, environmentally friendly and easy to adjust.

DZJ-150 Medium Electric Vibratory Hammer
Motor Power (Kw)	150
Eccentric Moment (Nm)	1120
Frequency (rpm)	0-1140
Centrifugal Force (kN)	0-960
Max Line Pull (kN)	450
Amplitude (mm)	0-13.5
Size (mm)	2200*1500*3300
Without Clamp (Kg)	8700
Single Clamp (Kg)	1500
Min Crane Capacity (t)	80

Line pull, amplitude and eccentric moment of medium electric vibratory hammer should be taken into account, for they can reflect the strength of the electric hammer. In addition, please do pay attention to different hammers' requirements for corollary equipment.

30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.

Meidum electric vibratory hammer and clamp can be packaged with thin film, and the control cabinet and components can be packed with wooden box (depending on clients' requirements).

Yong'an Machinery is a specialized company that integrates developing, manufacturing and selling of vibratory hammers. We are dedicated to improving quality, reducing cost, protecting nature and satisfying every client. In order to achieve these, we spare no efforts to adopt accessories of foreign brands, set up manufacturing base, use eco-friendly material and establish all level customer service system. Therefore, our medium electric vibratory hammer is very popular both at home and abroad. If you want to acquire more knowledge about pile driver, please visit our website or contact us at your own will.
