DZJ135 Medium Electric Vibratory Hammer
Medium electric vibratory hammer is designed in line with resonance theory, which also is called automatic hammer, vibratory pile hammer and pile driver. This hammer gains energy from electric motor and contains three main parts: hammerhead, clamp and power control box. As the pile hammer has many remarkable traits, it enjoys wide applications in dwelling houses, workshops, metros, highway, power stations, and so on.
1. Medium electric vibratory hammer enjoys the merits of large line pull, high vibrating frequency and strong penetration through soil.
2. With the installment of a heavy on the damper, this pile hammer drives piles heavily. What's more, pile driving efficiency can be greatly enhanced by spring's larger storage of energy. And frame will be well protected by way of a good damping effect.
Medium electric vibratory hammer, used in frame, can drive cast-in-place concrete piles, lime piles, sand piles, and gravel piles. While equipped with corresponding hydraulic clip, such pile hammer can drive and pull steel casing piles, steel sheet pile, and joist piles.

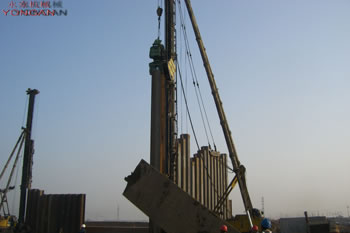

With custom designed concrete clamp, medium electric vibratory hammer can be used for various types of pre-made concrete piles, cast-in-place concrete pile, concrete expanded bore pile, lime pile and stone column pile.
2. Cofferdam
The pile driver is used to drive sheet pile to build the coffer wall. It is high efficiency to drive and pull sheet piles.

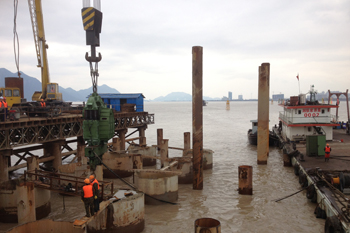

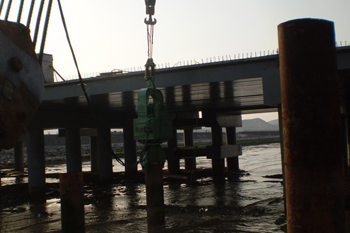

3. Trestle Work and Offshore Working Platform
Drive sheet pile or casing pile to build working passage and platform before build bridge, dork, port, etc. It is easy to build and easy to remove.

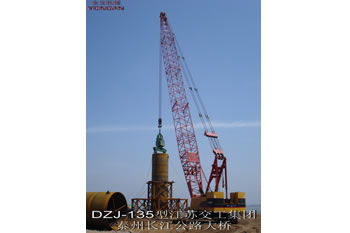

4. Wind Mill Single Pile and Group Pile
It is efficient to use medium electric vibratory hammer to drive casing pile into the sea , environmentally friendly and easy to adjust.
| DZJ-135 Medium Electric Vibratory Hammer | |
| Motor Power (Kw) | 135 |
| Eccentric Moment (Nm) | 806 |
| Frequency (r/min) | 0-1000 |
| Centrifugal Force (kN) | 0-883 |
| Max Line Pull (kN) | 420 |
| Amplitude (mm) | 0-8.2 |
| Size (mm) | 2100*1450*3000 |
| Without Clamp (Kg) | 7200 |
| Single Clamp (Kg) | 1500 |
| Min Crane Capacity (t) | 70 |
Line pull, amplitude and eccentric moment of medium electric vibratory hammer should be taken into account, for they can reflect the strength of the electric hammer. In addition, please do pay attention to different hammers' requirements for corollary equipment.
30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
The hammer and clamp can be packaged with thin film, and the control cabinet and components can be packed with wooden box (depending on clients' requirements).
Throughout these 27 years, Yong'an has been enriching and renewing its products. At present, the company manufactures medium electric vibratory hammers of various kinds and their accessories. At the same time, we always attempt to improve the quality of each item of our entire products. Through lots of efforts, we've got certified by UC and ISO9001. Please visit our website or contact us directly for more information about pile hammer.
