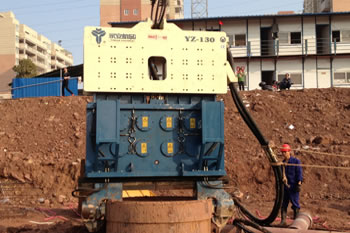

YZ-130 Vibratory Hammer
YZ-130 hydraulic vibratory hammer is used to drive piles. This kind of hydraulic vibratory hammer can be used together with hydraulic clamp to drive various steel pile such as steel pipe pile, steel sheet pile, and joist steel pile. Hydraulic piling hamemr is an ideal pile driver in foundation construction of house, plant, subway, highway, dock, airport, power plant, and so forth.
With custom designed concrete clamp, vibratory hammer can be used for various types of pre-made concrete piles, cast-in-place concrete pile, concrete expanded bore pile, lime pile and stone column pile.
2. Cofferdam
The vibratory hammer is used to drive sheet pile to build the coffer wall. It is high efficiency to drive and pull sheet piles.
3. Trestle Work and Offshore Working Platform
Drive sheet pile or casing pile to build working passage and platform before build bridge, dork, port, etc. It is easy to build and easy to remove.
4.Offshore Wind Mill Single Pile and Group Pile
Hydraulic piling hammer is efficient to use vibratory hammer drive casing pile into the sea, environmentally friendly and easy to adjust.
2. It is of compact structure. Small and light, this hammer is powerful in piling.
3. Our hammers have been certified by ISO9001 Quality Management System, thus quality is guaranteed.
4. Many accessories of YZ-130 hydraulic vibratory hammer are foreign brands, such as CAT engines, FAG bearings, Kawasaki hydraulic pumps and so on.
YZ-130 Hydraulic piling hammer, as the table shows, owns a maximum line pull capacity of 800/1200 kn. And its eccentric moment can be up to 46 kgm. 1300 kn is the rated centrifugal force and 1690 kn is the maximum one. Like YZ-70, this driver works well to pull various kinds of steel piles.
| Eccentric Moment (kgm) | 46 |
| Maximum Frequency (rpm) | 1600 |
| Centriifugal Force (kN) | 1300 |
| Maximum Centrifugal Force (kN) | 1690 |
| Maximum Line Pull (kN) | 800/1200 |
| Maximum Amplitude (mm) | 28 |
| Maximum Oil Flow (L/min) | 600 |
| Size (mm) | 2550*900*2650 |
| Weight (Kg) | 7800 |
- 1. Please choose the suitable type of vibratory hammer you need in accordance to its centrifugal force.
- 2. Both standard and customized clamps are offered.
- 1. 30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
- 2. Our vibratory hammer will be wrapped by membrane. If special requirement is made, it can be delivered in a wooden box package.
Yong'an Machinery was founded in 1986 and enjoys a history in manufacturing vibratory hammer of more than 20 years. During the 20 years of researching and developing, producing, selling and leasing pile drivers, it is now an experienced leading company in this field. Yong'an products are well known by customers from home and abroad for its quality performance and superior service. Our vibratory hammers are among your top choices in pile driver. YZ-130 hydraulic vibratory hammer, for example, is quite ideal for you to carry out foundation construction no matter for civil or public use.
