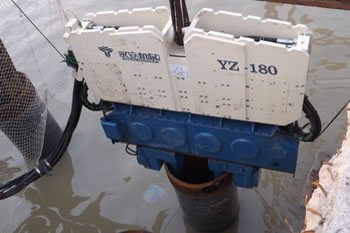

YZ-180 Vibratory Hammer

1. Pre-Made Concrete Pile
With custom designed concrete clamp, vibratory hammer can be used for various types of pre-made concrete piles, cast-in-place concrete pile, concrete expanded bore pile, lime pile and stone column pile.
2. Cofferdam
Hydraulic vibrating pile driver is used to drive sheet pile to build the coffer wall. It is high efficiency to drive and pull sheet piles.
3. Trestle Work and Offshore Working Platform
Drive sheet pile or casing pile to build working passage and platform before build bridge, dork, port, etc. It is easy to build and easy to remove.
4. Wind Mill Single Pile and Group Pile
Vibratory hammer is efficient to use vibratory hammer drive casing pile into the sea, environmentally friendly and easy to adjust.
1. The machine creates less noise in operation.
2. It is of compact structure. Small and light, this hammer is powerful in piling.
3. Our vibratory hammer has been certified by ISO9001 Quality Management System, thus quality is guaranteed.
4. Many accessories of YZ-180 hydraulic vibratory hammer are foreign brands, such as CAT engines, FAG bearings, Kawasaki hydraulic pumps, and so on.

The eccentric moment of YZ-180 hydraulic vibrating pile driver is 55kgm. Its rated centrifugal force turns to be 1800 kn (maximum: 2340 kn). In addition, the machine has a maximum line pull capacity of 800/1200 kn. Thus, this type works effectively in driving and pulling steel casing piles, steel sheet piles and joist steel piles. And, vibrator is always used with single clamp and double clamp.

Eccentric Moment (kgm)	55
Maximum Frequency (rpm)	1700
Centriifugal Force (kN)	1800
Maximum Centrifugal Force (kN)	2340
Maximum Line Pull (kN)	800/1200
Maximum Amplitude (mm)	32
Maximum Oil Flow (L/min)	600
Size (mm)	2830*585*2170
Weight (kg)	7200

1. 1. Please choose the suitable type of vibratory hammer you need in accordance to its centrifugal force.
2. 2. Both standard and customized clamps are offered.

1. 1. 30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
2. 2. Our vibratory hammer will be wrapped by membrane. If special requirement is made, it can be delivered in a wooden box package.

Yong'an Machinery was founded in 1986 and enjoys a history in manufacturing hydraulic vibrating pile driver for more than 20 years. During the 20 years of researching and developing, producing, selling and leasing pile drivers, it is now an experienced leading company in this field. Yong'an products are well known by customers from home and abroad for its quality performance and superior service. Our vibratory hammers are among your top choices in pile driver. YZ-180 hydraulic vibratory hammer, for example, is quite ideal for you to carry out foundation construction no matter for civil or public use.
