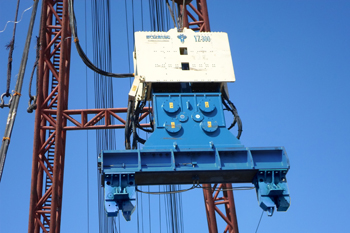

YZ-300 Vibratory Hammer

1. Pre-Made Concrete Pile
With custom designed concrete clamp, vibratory hammer can be used for various types of pre-made concrete piles, cast-in-place concrete pile, concrete expanded bore pile, lime pile and stone column pile.
2. Cofferdam
The vibratory hammer is used to drive sheet pile to build the coffer wall. It is high efficiency to drive and pull sheet piles.
3. Trestle Work and Offshore Working Platform
Drive sheet pile or casing pile to build working passage and platform before build bridge, dork, port, etc. It is easy to build and easy to remove.
4. Wind Mill Single Pile and Group Pile
Hydraulic pile hammer is efficient to use vibratory hammer drive casing pile into the sea, environmentally friendly and easy to adjust.
1. Vibratory hammer creates less noise in operation.
2. It is of compact structure. Small and light, this hammer is powerful in piling.
3. Our hammers have been certified by ISO9001 Quality Management System, thus quality is guaranteed.
4. Many accessories of YZ-300 hydraulic vibratory hammer are foreign brands, such as CAT engines, FAG bearings, Kawasaki hydraulic pumps, and so on.

Like YZ-300 hydraulic pile hammer is also agreeable for constructions on hard rock. The eccentric movement is 130kgm and maximum line pull is 2000kn. As the rated centrifugal force is 3000kn (maximum: 3700kn), this type of hammer is very effective in driving steel piles, like steel casing piles, steel sheet piles, and so on.

Eccentric Movement (kgm)	130
Max Frequency (rpm)	1600
Centrifugal Force (kN)	3000
Max Centrifugal Force (kN)	3700
Max Line Pull (kN)	2000
Max Amplitude (mm)	37
Max Oil Flow (L/min)	1200
Size (mm)	3500*1100*4700
Weight (Kg)	13540

1. 1. Please choose the suitable type of vibratory hammer you need in accordance to its centrifugal force.
2. 2. Both standard and customized clamps are offered.

1. 1. 30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
2. 2. Our vibratory hammer will be wrapped by membrane. If special requirement is made, it can be delivered in a wooden box package.

Yong'an Machinery Co., Ltd, one of the most professional vibratory hammer manufactures in China. Market-oriented, our company all along regards “creating customer value” as its final target, serving and satisfying our customers in its utmost. And with a specialized research and development team, we can provide our customers with a comprehensive service from piling construction scheme to operation of YZ-300 vibratory hammer.
