YZ-230 Vibratory Hammer
YZ-230 hydraulic vibratory hammer is used to drive piles. This kind of hydraulic vibratory hammer can be used together with hydraulic clamp to drive various steel pile such as steel pipe pile, steel sheet pile, and joist steel pile. Hydraulic pile driver is an ideal pile driver in foundation construction of house, plant, subway, highway, dock, airport, power plant, and so forth.
With custom designed concrete clamp, vibratory hammer can be used for various types of pre-made concrete piles, cast-in-place concrete pile, concrete expanded bore pile, ,lime pile and stone column pile.
2. Cofferdam
The vibratory hammer is used to drive sheet pile to build the coffer wall. It is high efficiency to drive and pull sheet piles.
3. Trestle Work and Offshore Working Platform
Drive sheet pile or casing pile to build working passage and platform before build bridge, dork, port, etc. It is easy to build and easy to remove.

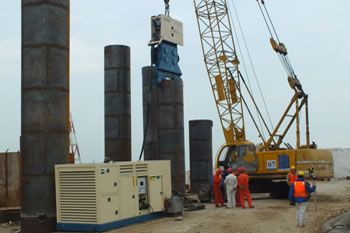

4. Wind Mill Single Pile and Group Pile
Hydraulic pile driver is efficient to use vibratory hammer drive casing pile into the sea, environmentally friendly and easy to adjust.
2. It is of compact structure. Small and light, this hammer is powerful in piling.
3. Our hammers have been certified by ISO9001 Quality Management System, thus quality is guaranteed.
4. Many accessories of YZ-230 hydraulic vibratory hammer are foreign brands, such as CAT engines, FAG bearings, Kawasaki hydraulic pumps, and so on.
As showed in the following table, YZ-230 hydraulic pile driver eccentric moment is 85 kgm. 2300 kn is the rated centrifugal force (maximum: 2900 kn). And the machine's maximum line pull is 1200kn. Such model of vibrator is suitable for operations on hard soil and for many types of steel piles.
| Eccentric Movement (kgm) | 85 |
| Max Frequency (rpm) | 1600 |
| Centrifugal Force (kN) | 2300 |
| Max Centrifugal Force (kN) | 2990 |
| Max Line Pull (kN) | 1200 |
| Max Amplitude (mm) | 31 |
| Max Oil Flow (L/min) | 900 |
| Size (mm) | 2430*1100*3680 |
| Weight (Kg) | 9800 |
- 1. Please choose the suitable type of vibratory hammer you need in accordance to its centrifugal force.
- 2. Both standard and customized clamps are offered.
- 1. 30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
- 2. Our vibratory hammer will be wrapped by membrane. If special requirement is made, it can be delivered in a wooden box package.
Yong'an machiner ceaselessly devotes itself to technological innovation as well as research and development of our products. Our company established corporative relationship with the leading hydraulic vibratory hammer manufacturer in the world, ICE Holland and established hydraulic vibratory hammer production base in Fujian. Besides, we also own modern high-end producing line with a CNC center.
