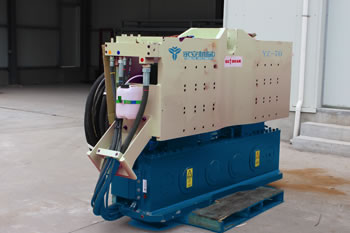

YZ-70 Vibratory Hammer

1. Pre-Made Concrete Pile
With custom designed concrete clamp, vibratory hammer can be used for various types of pre-made concrete piles, cast-in-place concrete pile, concrete expanded bore pile,lime pile and,stone column pile.
2. Cofferdam
The vibratory hammer is used to drive sheet pile to build the coffer wall. It is high efficiency to drive and pull sheet piles.
3. Trestle Work and Offshore Working Platform
Drive sheet pile or casing pile to build working passage and platform before build bridge, dork, port, etc. It is easy to build and easy to remove.
4. Offshore Wind Mill Single Pile and Group Pile
Hydraulic pile driver is efficient to use vibratory hammer drive casing pile into the sea, environmentally friendly and easy to adjust.
1. YZ-70 vibratory hammer creates less noise in operation.
2. It is of compact structure. Small and light, this hammer is powerful in piling.
3. Our hammers have been certified by ISO9001 Quality Management System, thus quality is guaranteed.
4. Many accessories of YZ-180 hydraulic vibratory hammer are foreign brands, such as CAT engines, FAG bearings, Kawasaki hydraulic pumps, and so on.

YZ-70 hydraulic pile driver has an eccentric moment of 23 kgm and a maximum line pull capacity of 400 kn. Besides, its rated centrifugal force is 650kn, while the maximum centrifugal force can reach 845 kn. This model can be used with single or double clamp in driving steel casing piles, steel sheet piles and joist steel piles.

Eccentric Moment (kgm)	23
Maximum Frequency (rpm)	1700
Centrifugal Force (kN)	650
Maximum Centrifugal Force (kN)	845
Maximum Line Pull (kN)	400
Maximum Amplitude (mm)	22
Maximum Oil Flow (L/min)	360
Size (mm)	2600*665*2000
Weight (Kg)	4400

1. 1. Please choose the suitable type of hydraulic vibratory hammer you need in accordance to its centrifugal force.
2. 2. Both standard and customized clamps are offered.

1. 1. 30% deposit payment should be paid after signing the contract. Full payment should be paid before delivery.
2. 2. Our vibratory hammer will be wrapped by membrane. If special requirement is made, it can be delivered in a wooden box package.

Founded in 1986, Yong'an Machinery Co., Ltd. is a professional and experienced company in manufacturing vibratory hammers. The products we produce are highly spoken by our fresh and old customers due to its quality performance and superior service. YZ-70 hydraulic vibratory hammer is among the most ideal choices of pile driver for you to lay foundation construction of house, plant, subway, expressway, dock, airport, power plan, and so forth.
